SPEED OF SOUND IN DIFFERENT MEDIA
It is a matter of common
experience that when we strike an object with a hammer, the sound of hammering
is heard a short while after the actual impact. Similarly, the sound of cracker
is heard only after it has exploded. These simple observations reveal that
sound travels with a finite speed. Further, the flash and thunder is heard later on. The lapse of time between
thunder is sometimes a few tens of a second. From this, we can easily conclude
that sound travels with a speed which is much less than the speed of light.
Thus, the speed of sound is finite and is much less than the
speed of The speed of sound depend upon :
1. the properties (elasticity and density) of the medium
through which is propagates, and
2. temperature of the medium.
Sound (in general) has greatest speed in case of solids and
least in case of gases. For liquids, the speed of sound is intermediate between
these two extremes.
In general, speed of sound in solids > speed of sound in
liquids > speed of sound in gases.
However, in certain solids, the speed (v) of sound is much
less than that rubber) = 54 m/s and v (for hydrogen) = 1284 m/s. The speed of
sound in water (a liquid) = 1531 m/s. The speed of sound in methyl alcohol (a
liquid gas), its value = 1284 m/s.
The speed of sound increases with increase in temperature of
the medium. The speed of sound in air at 0°C is 331 m/s. In air, it increases
roughly by 0.6 m/s with rise of 1°C in temperature. Thus, a good approximation
of the speed of sound in air of a particular temperature is given by
At 20°C, the speed of sound is 343 m/s, at 22°C its value is
344.2 m/s and at 25°C, it is 346 m/s.
SHOCK
WAVES: SONIC BOOM
Sources that move
faster than the speed of sound are said to have supersonic speeds. In such
cases, the source advances more than the sound waves. The energy emitted in
such cases is unable to move in front of the source and is concentrated on the
sides. This concentration of energy as it travels outward in the form of a
cone-shaped wave, is called a shock wave. Note that it is not necessary for an
object to have a vibrating source of sound in order to create a shock wave. The
only condition necessary is that the object moves with a speed greater than the
speed of sound. The ratio of the speed of the source to the speed of sound is
called the Mach number. Thus, shock waves, also called Mach waves, are
generated by objects moving with a Mach number greater than one.
Sonic boom is an
example of a shock wave produced by a distant supersonic aircraft. It is
clearly heard by an observer at rest on the ground. The energy carried by a
sonic boom which lasts only for a fraction of a second is sometimes sufficient
to crack glass windows and shatter buildings. It is sometimes wrongly thought
that a sonic beam is produced only at the moment an aircraft breaks the sound
barrier (i.e., exceeds the speed of sound). In fact, a shock wave follows the
aircraft all the time it is travelling al supersonic speeds. Thus, a series of
observers on the ground hear the boom as the shock wave passes by them.
On
Your Tips

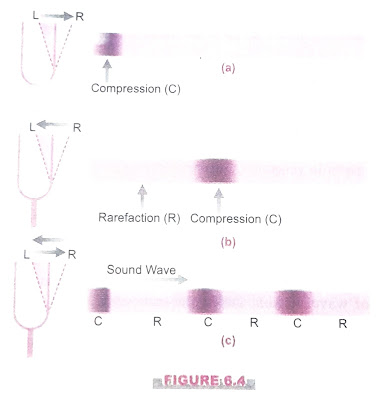

1. A portion of the
medium where the density (or pressure) has a larger value than its average
value is called a compression (or a crest).
2. A portion of the
medium where the density (or pressure) has a value smaller than the average
value is called a trough (or a rarefaction).
3. The magnitude of
the maximum disturbance in the medium on either side of the mean position is
called the amplitude.
4. The change in
density (or pressure) from the maximum value to the minimum value and again to
the maximum value is called an oscillation.
5. The number of
complete oscillations per second is called the frequency (v) of the sound wave.
The unit of frequency is called hertz (Hz).
6. The time taken for
one complete oscillation in density (or pressure) of the medium is called the
time period (T) of the wave.
7. The distance
between two consecutive compressions (or crests) or two consecutive
rarefactions (or troughs) is called the wavelength.
8. The distance
travelled by a sound wave in its periodic time is also called wavelength (a) of
the wave
9. The speed of sound
depends mainly on its nature and the temperature of the medium through which
its propagates.
10. The relation
between speed of the sound wave (v), its frequency (v) and wavelength (a) is v
=νλ.
11. The sound wave is
described by : (i) its speed, (ii) its frequency (or wavelength) and (iii) its
amplitude. These are called the characteristics of a sound wave.
12. In general, speed
of sound in solids > speed of sound in liquids > speed of sound in gases.
However, this relation is not always valid.
13. Sources that move
faster than the speed of sound are said to have supersonic speeds. Bullets, jet
aircrafts etc. travel at supersonic speeds.
14. A shock wave is
produced when sound producing source moves with a speed higher than the speed
of sound. 15. It is not
necessary for an object to be a vibrating source of sound to produce a shock
wave. 16. A shock wave
carries a large amount of energy. 17. The ratio of
the speed of the source to the speed of sound is called the Mach Number. Shock
waves are produced when Mach number is greater than one. 18. Shock waves are
also called Mach waves. 19. Sonic boom is a
very sharp and loud sound produced by pressure variation associated with a shock
wave. |
